Controlgear

MAXGE Pushbuttons

• SGB2 GOLD Pushbuttons 22mm Ø IP65 – Gold Flashed Contacts
• All types of operators including Flush, Raised & Mushroom Operators, Emergency Stops, Selector Switches, Key Switches, LED Illuminated & double operator Start/Stop Push Buttons.

MAXGE SGB2 LED Indicators 22mm Ø

• Constant LED Indicators to IP65 24VAC/DC & 230VAC
• Flashing LED Indicators to IP65 24VAC/DC & 230VAC
• Flashing LED Indicators + Buzzer to IP65 24VAC/DC & 230VAC
• SGWQ Potentiometer 22mm Ø 10K Ohm

Maxge PB's

Impulse PB (Spring Return) Flush

• IP65 Operators

1NO Gold Flashed Contact

• SGB2-EA31G Green
• SGB2-EA61G Blue
• SGB2-EA21G Black
• SGB2-EA51G Yellow
• SGB2-EA11G White

1NC Gold Flashed Contact

• SGB2-EA42G Red

Impulse PB (Spring Return) Raised

• IP65 Operators

1NO Gold Flashed Contact

• SGB2-EL31G Green
• SGB2-EL61G Blue
• SGB2-EL21G Black
• SGB2-EL51G Yellow
• SGB2-EL11G White

1NC Gold Flashed Contact

• SGB2-EL42G Red

Illuminated Push Buttons 24VAC/DC

• IP65 Operators (with supplied boot)

1NO Gold Flashed Contact

• SGB2-EW3361G024 Green
• SGB2-EW3661G024 Blue
• SGB2-EW3561G024 Yellow
• SGB2-EW3161G024 Clear

1NC Gold Flashed Contact

• SGB2-EW3462G024 Red

Illuminated Push Buttons 230VAC

• IP65 Operators (with supplied boot)

1NO Gold Flashed Contact

• SGB2-EW3361G Green
• SGB2-EW3661G Blue
• SGB2-EW3561G Yellow
• SGB2-EW3161G Clear

1NC Gold Flashed Contact

• SGB2-EW3462G Red

40mm Mushroom (Spring Return)

• IP65 Operators

1NO Gold Flashed Contact

• SGB2-EC31G Green
• SGB2-EC61G Blue
• SGB2-EC21G Black
• SGB2-EC51G Yellow
• SGB2-EC11G White

1NC Gold Flashed Contact

• SGB2-EC42G Red

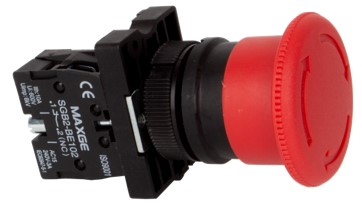

E-Stop Twist Release

• IP65 Operators
• 1NC Gold Flashed Contact

30mm Head

• SGB2-ES442G Red

40mm Head

• SGB2-ES542G Red

60mm Head

• SGB2-ES642G Red

40mm E-Stop Push-Pull

• IP65 Operator
• 1NC Gold Flashed Contact

40mm Head

• SGB2-ET42G Red

Start/Stop Double Push Button

• IP40/IP65 Operators (with supplied boot)
• 1NO+1NC Gold Flashed Contacts

Flush Start / Stop

• SGB2-EL8325G

Flush Start / Raised Stop

• SGB2-EL9325G

Start/Stop Illuminated Double PB 230V

• IP40/IP65 Operators (with supplied boot)
• 1NO+1NC Gold Flashed Contacts

Flush Start / Stop

• SGB2-EW8365G

Flush Start / Raised Stop

• SGB2-EW9365G

Potentiometers

• IP65 Rotary Operator
• SGWQ-22/10K Black
• 10K Ohm

MAXGE 40mm E-Stop Key Reset

• IP40 Operator
• 1NC Gold Flashed Contact
• SGB2-ES142G
• 40mm E-Stop Key Reset

MAXGE Key Switches

• IP40 Operator
• Gold Flashed Contacts
• SGB2-EG…G
• 2 & 3 Position
• Latched or Spring Return

MAXGE Selector Switches

• IP65 Operator
• Gold Flashed Contacts
• SGB2-ED…G
• 2 & 3 Position
• Latched or Spring Return

MAXGE PB Contact Block 1NO

• Additional/Spare Contact
• Gold Flashed Contact
• SGB2-BE101G

MAXGE PB Contact Block 1NC

• Additional/Spare Contact
• Gold Flashed Contact
• SGB2-BE102G

Maxge Indicators

Indicator 230VAC / 24VAC/DC

• IP65 – 22mm Ø

230VAC

• SGD22-22D-R-31 Red
• SGD22-22D-G-31 Green
• SGD22-22D-O-31 Orange
• SGD22-22D-Y-31 Yellow
• SGD22-22D-B-31 Blue
• SGD22-22D-W-31 White

24VAC/DC

• SGD22-22D-R-23 Red
• SGD22-22D-G-23 Green
• SGD22-22D-O-23 Orange
• SGD22-22D-Y-23 Yellow
• SGD22-22D-B-23 Blue
• SGD22-22D-W-23 White

Flashing Indicator 230VAC / 24VAC/DC

• IP65 – 22mm Ø

230VAC

• SGD22-22DS-R-31

24VAC/DC

• SGD22-22DS-R-23

Integral Buzzer + Flashing Indicator

• IP40 – 22mm Ø

230VAC

• SGD22-22SM-R-31

24VAC/DC

• SGD22-22SM-R-23
